📐 Specs
- Size: 8.5x24
- Color: Charcoal

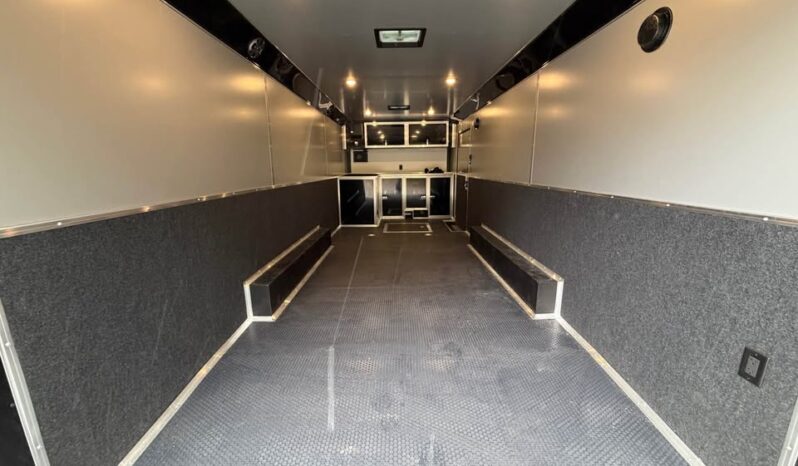

- Interior Height: 7’4” (88”)
- GVWR: 9,990 lbs (Payload: 5,840 lbs | Dry Weight: 4,150 lbs)
- Axles: 5.2k Torflex Ele Break Axles

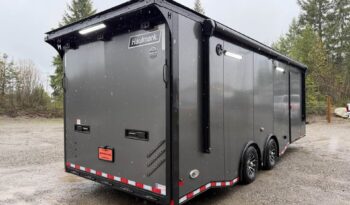

- Rear Door: Upgraded 5,000 lb ramp door w/ 8’ height w/ramp extension
- Rear Opening: 96” wide by 8’ tall
🔧 Features

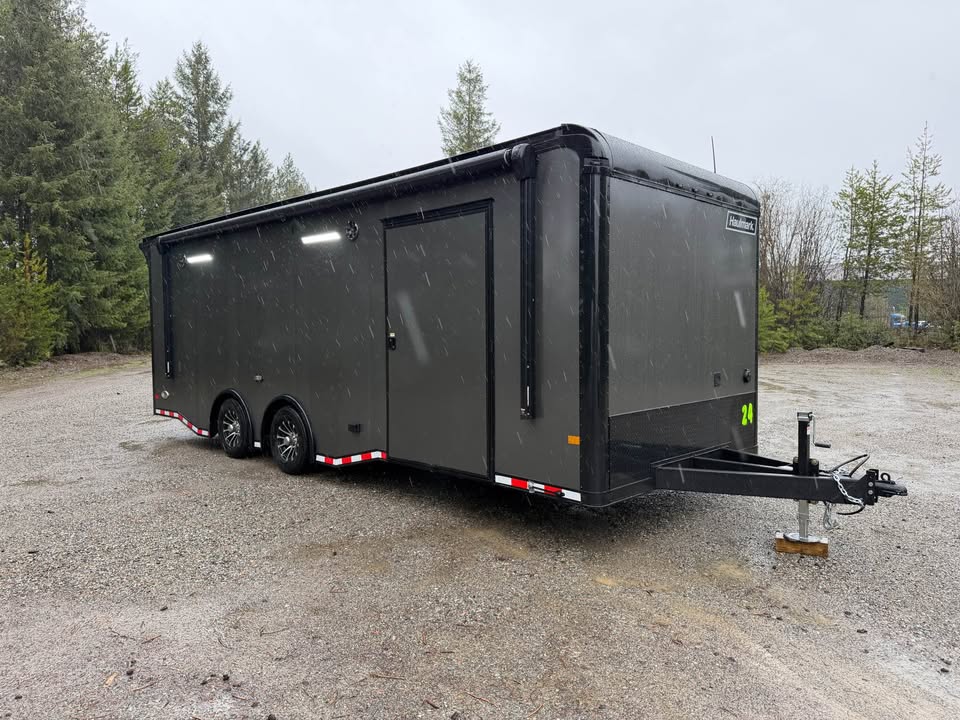

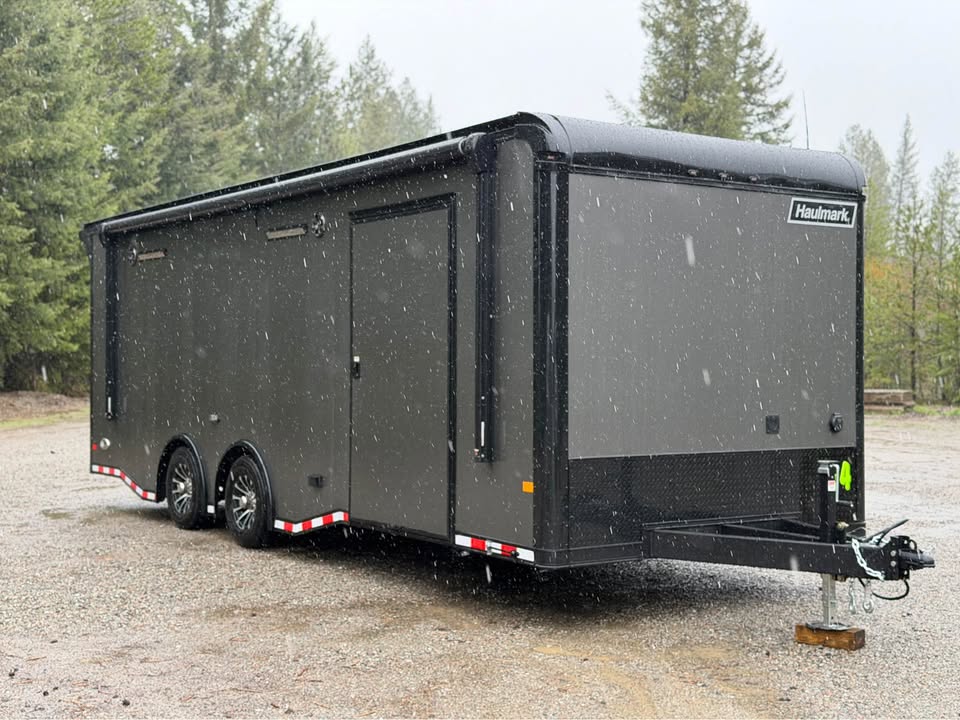

- Flat front/flat roof truck-body design
- Roof and sidewall structure
- 16” OC c-channel floor crossmembers
- 16” OC tube sidewall posts
- 16” OC tube roof structure
- 54” A-Frame with center tube
- 48in beavertail
- 2 5/16” adjustable wallace forge (20k cast coupler)
- Square tube 8k drop leg side with jack with footplate
- .080 ACP panels
- Cast aluminum corners
- Stainless steel cap and front corners
- Polished aluminum rear corners and header
- 1-piece aluminum roof
- AromorTech on A-Frame and rear end rail
- 24” ATP stoneguard

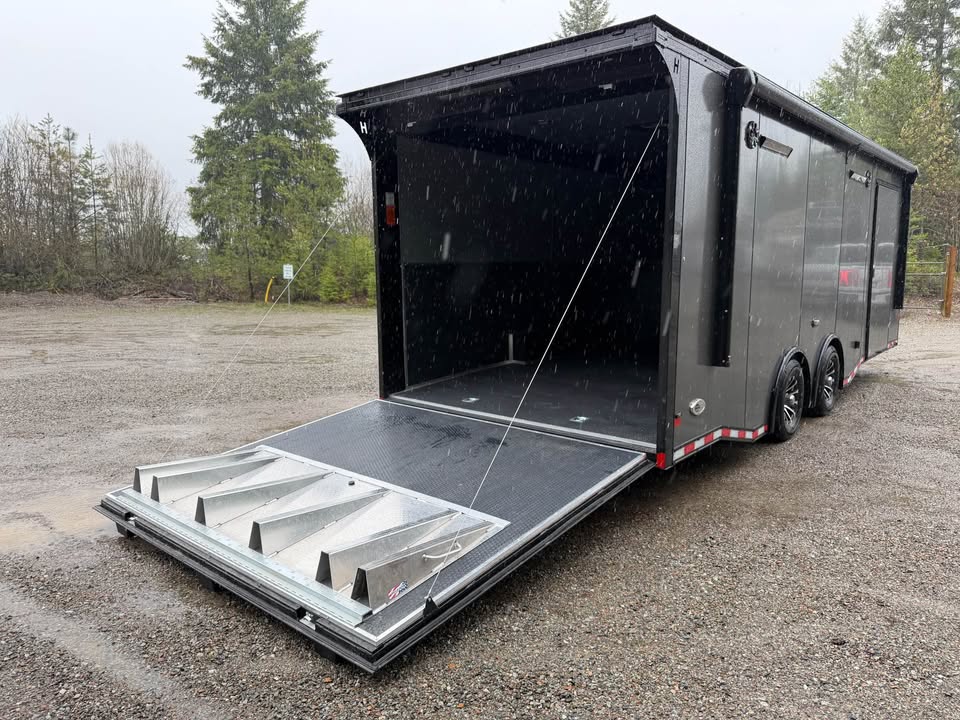

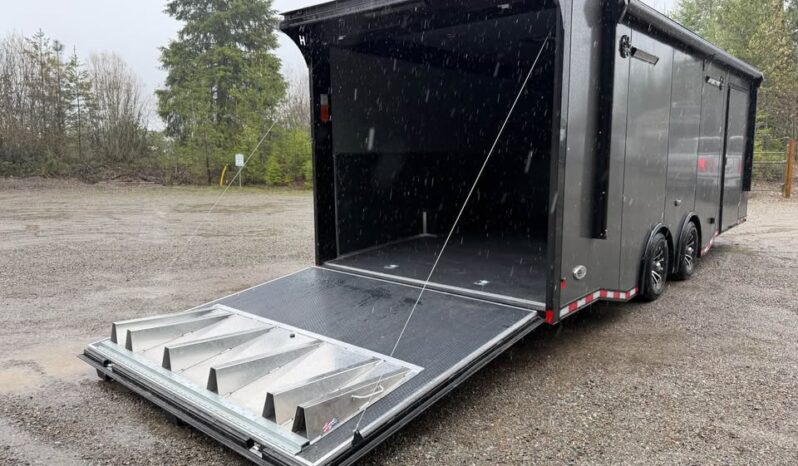

- Spring-assisted rear ramp door
- 16” PlexCore ramp extension
- Heavy-duty recessed paddle latches on rear ramp door
- Torflex spread axle design with drop skirting

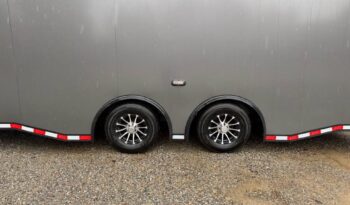

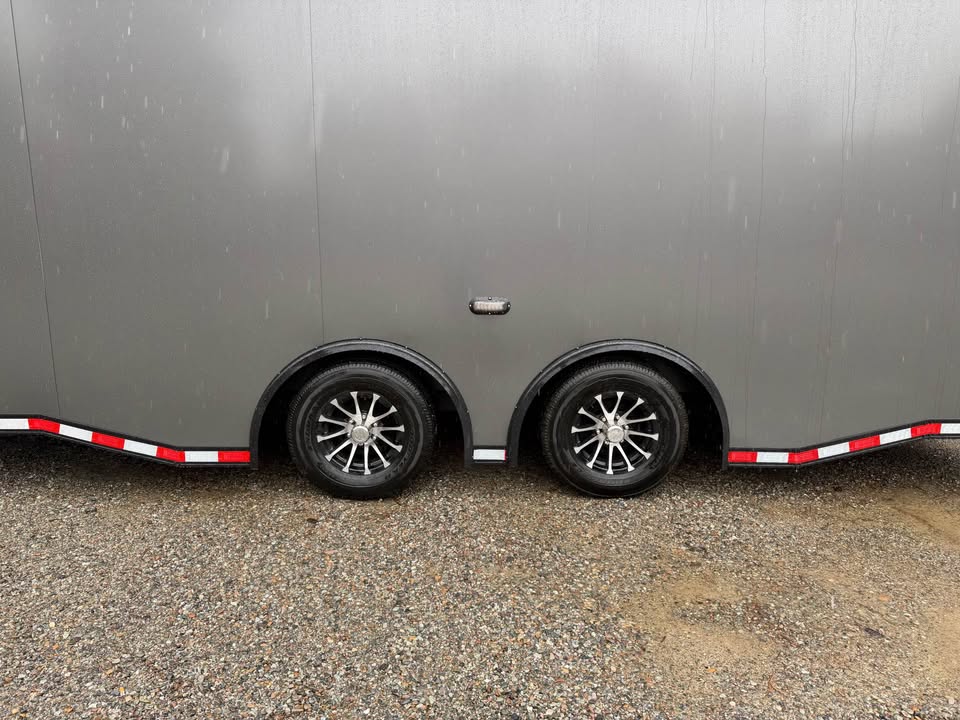

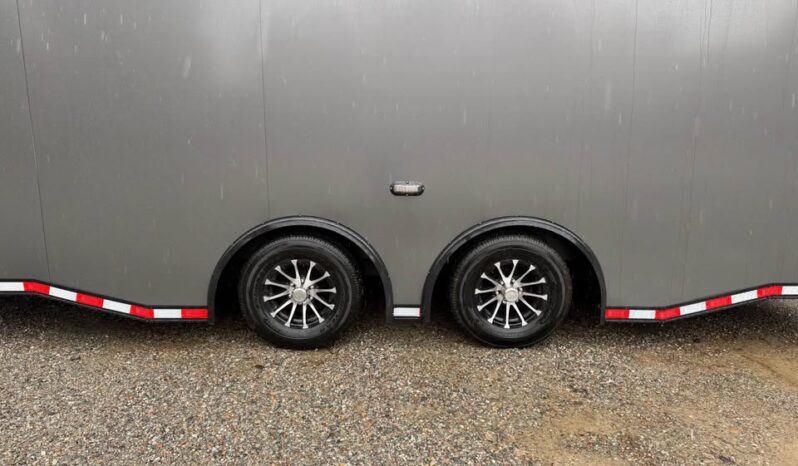

- Black Viper aluminum wheels (ST225/75R15E Goodyear Radial tires)
- 5k Square D-Rings with welded plate
🔧 Upgrades
- 14x14 roof vent, framed and wired for AC (2)
- 20’ black fade power awning w/black Mtl shield and Ctr support
- 12v LED 24” 9k lumen scene light
📦 Packages
- Blackout Trim Only Package
- Black Out Trailer-Trims, Stoneguard, Casitings, etc.
- Black Top & Bottom Trim
- Black Fenders/Fenderettes
- 24ft Sportsman Package Plus
- Frame and wire for roof mount A/C
- 36in Aluminum extension w/large bumpers
- Additional LED smoked lens amber clearance lights
- Additional LED smoked lens red clearance lights
- 12v LED side surface mount back-up light
- 120/240v 50A motorbase with twist lock connect
- 120/240v 50A power cord/plug - 25ft

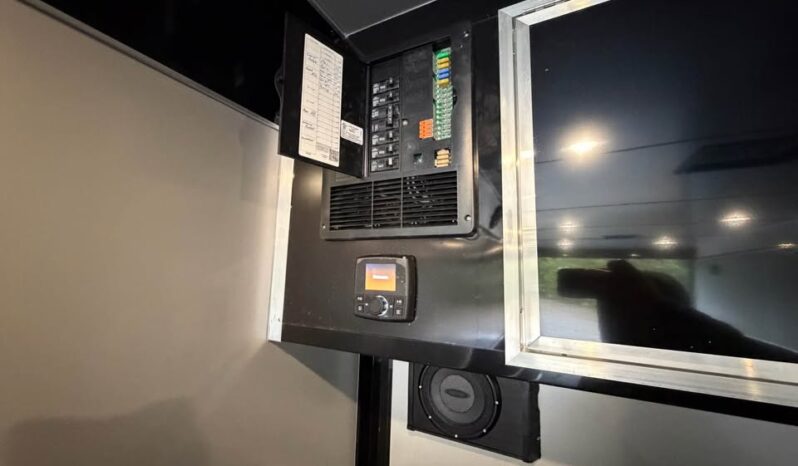

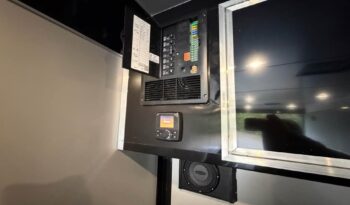

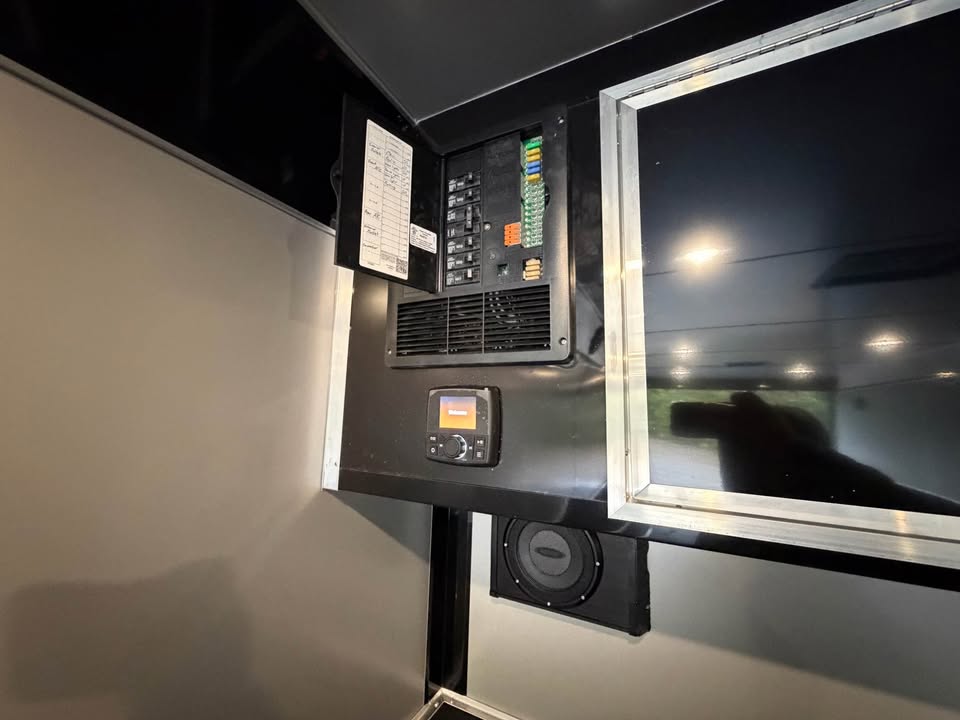

- 50A AC/DC panel w/75aD/C converter
- Marine batter w/vented int above floor bat box
- 120v 20a duplex 1g recept (2 outlet)
- 120v 20a duplex ext GFI recept(surface mount)
- 12v LED 6" round dome light w/chrome ring
- 12v illuminated interior surface-mount switch
- 12" steel rear spoiler w/one 9k lumen scene light
- 34x34 below floor tire storage
- ACP silver fost sidewall liner & ceiling liner w/insulation
- .030 black interior cove & spring cover
- Charcoal gray track pad wall guard

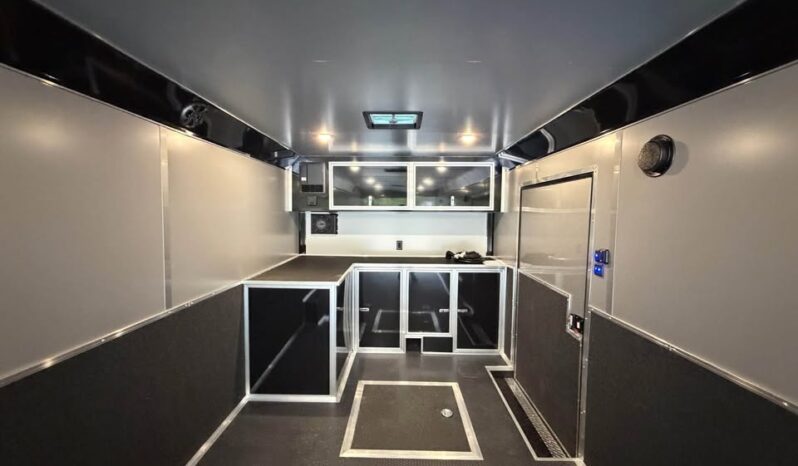

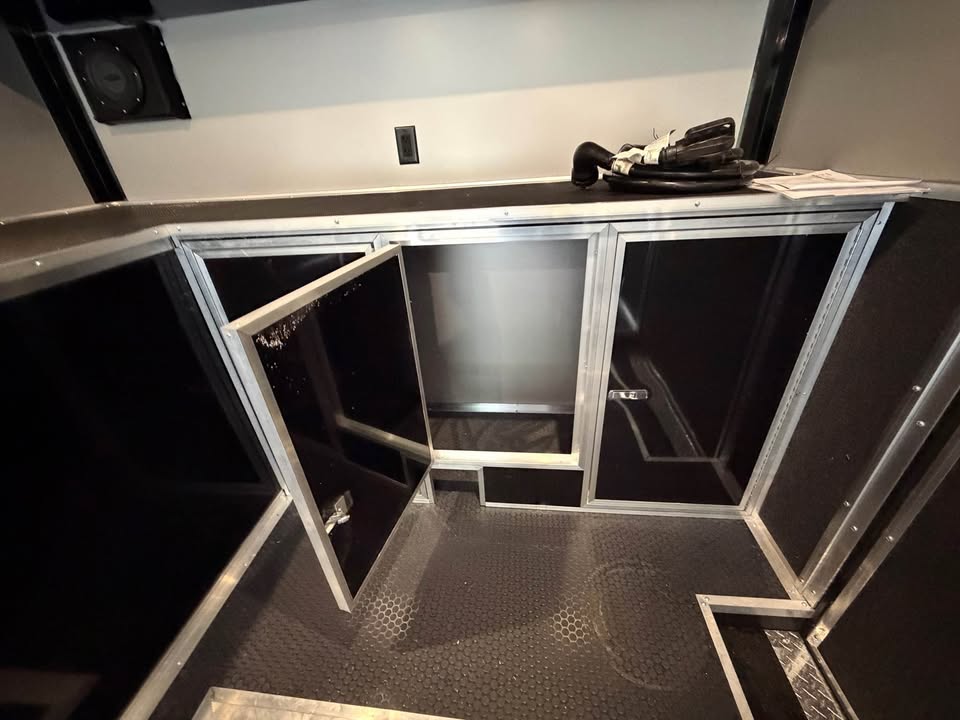

- Black texture polybead countertop for cabinets

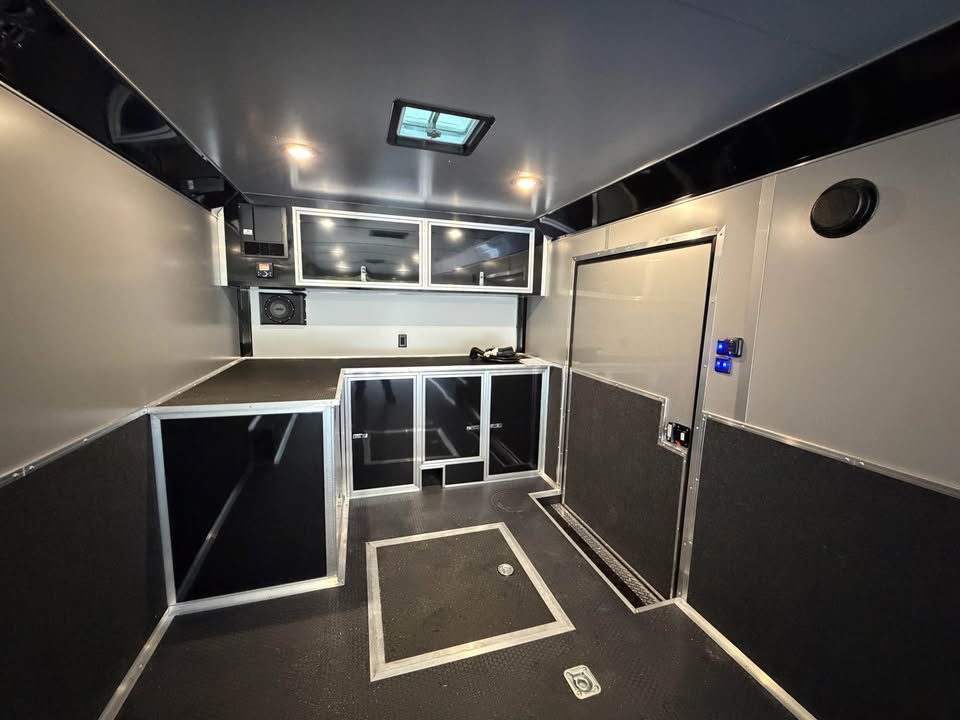

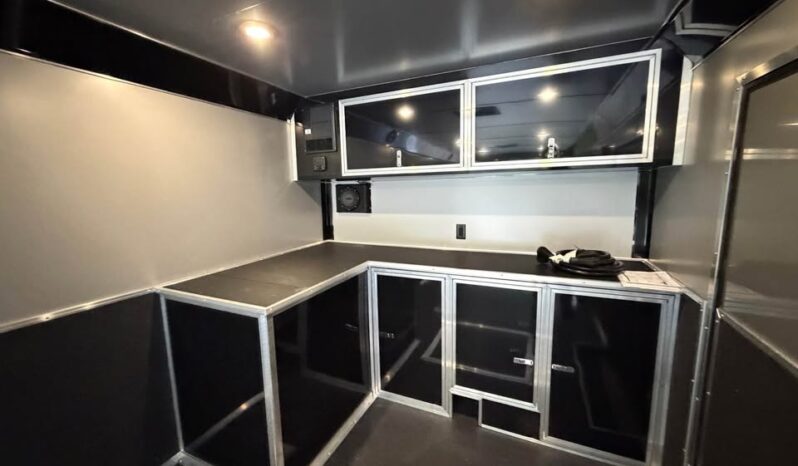

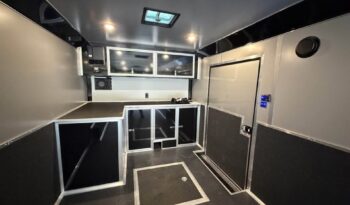

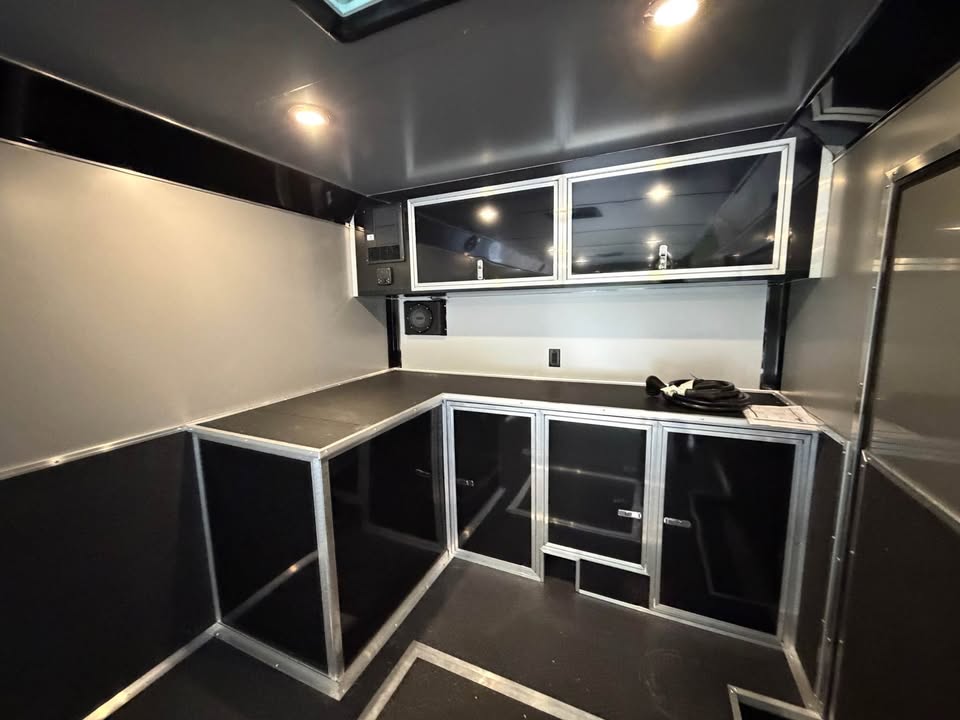

- 96x24.5 black aluminum OH cabinet

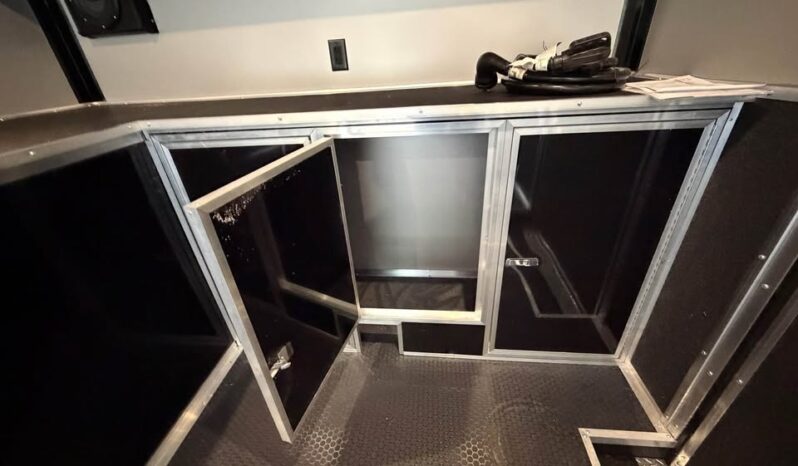

- 96x24x40 black base cabinets
- Battery disconnect switch
- Brand name monitor-receiver w/Bluetooth

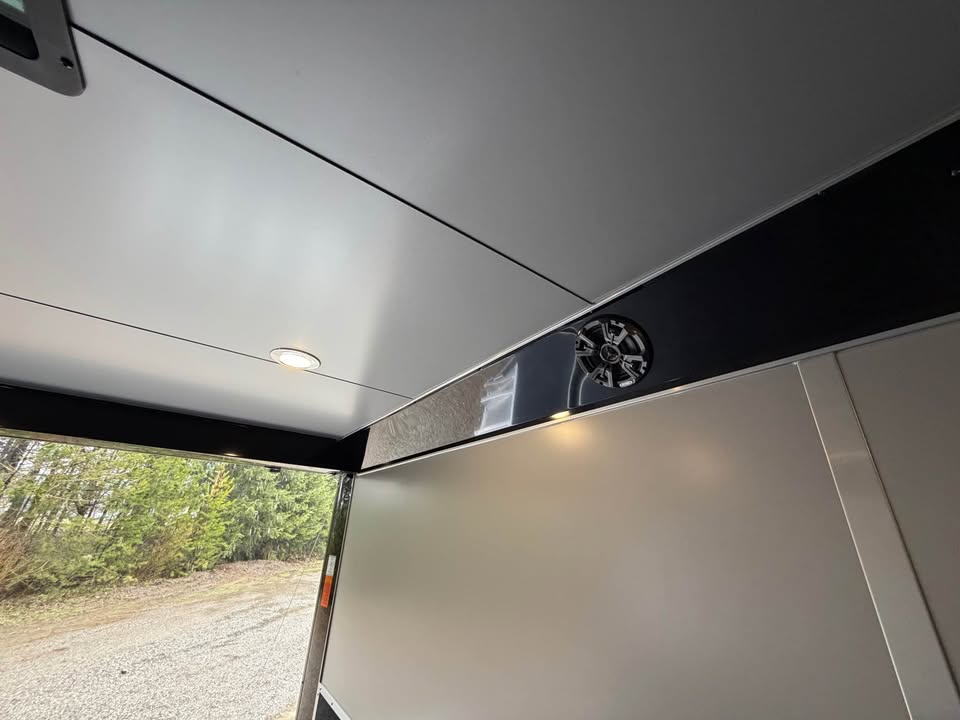

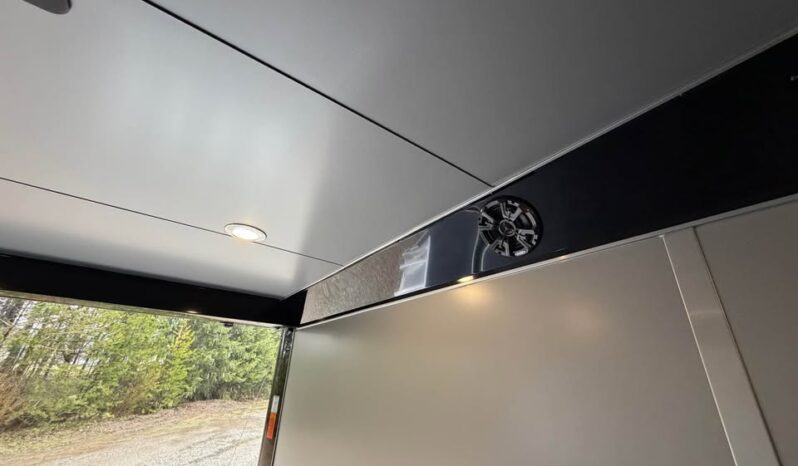

- 6.5" interior marine speakers - black

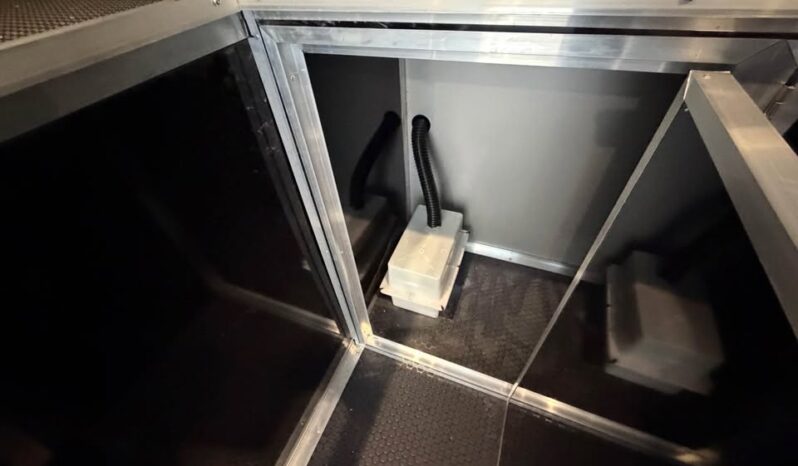

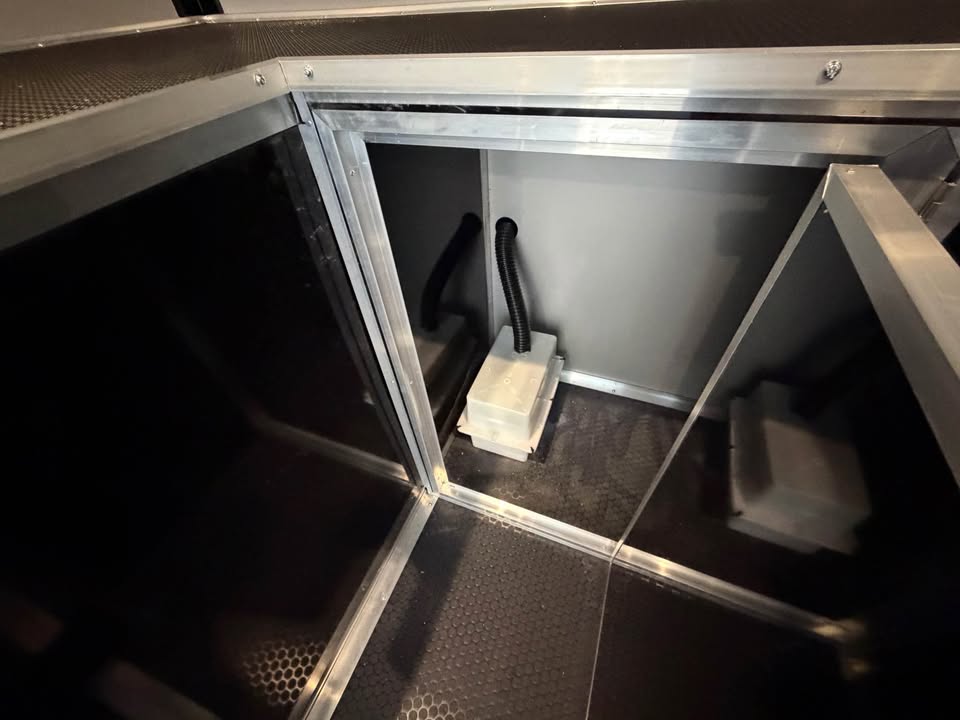

- Aluminum insulated interior generator box
- 36x33 generator door
- Plate in floor for winch
- AM/FM antenna
- 48x78 side PT door - RH hinge - recessed step
🔒 Warranty Coverage
- 3-Year Structural
- 1-Year Hitch-to-Taillight
- 1-Year Corrosion
